TripTronic 3000 · Site data sheet

Start a quote with your conveyor's data.

The detector frame, coils and options are sized from the conveyor. Fill in what you know below and send it, or download the printable data sheet and fill it in on site. We come back with a configured quote.

Customer

Customer Site Conveyor / transfer designation

Contact name Email Phone

Belt & material

Belt width (mm) Belt thickness (mm) Belt speed (m/s) Belt construction

Ore / material type Max lump size (mm) Max burden depth (mm) Bulk density (t/m³)

Tonnes per hour Surcharge angle (°) Trough angle (°)

Structure at the proposed location

Stringer construction Current idler frame & location Bolt hole centres across stringers (mm)

Dimension 1 (mm) Dimension 2 (mm) Dimension 3 (mm) Dimension 4 (mm) Dimension 5 (mm) Dimension 6 (mm) Dimension 7 (mm) Dimension 8 (mm) Dimension 9 (mm) Dimension 10 (mm) 11 · Cross-bracing impingement height or return-strand belt distance from top of stringer (mm)

Stringer drawing supplied Idler frame drawing supplied Return-strand drawing supplied

Options & notes

Flag Drop Marker Clip detector Sounder / beacon Junction box Speed sensor Modbus / PLC integration

Clip detectors required (qty) Cable run, controller to detector frame (m) Controller enclosure

Anything else we should know

The budget estimate is built from our published list prices and is not a quote. Sending delivers the completed sheet, and the estimate if you generated one, to our engineers. Email any drawings to enquiries1@veytech.com.au.

TripTronic 3000 tramp metal detector data sheet, printable PDF

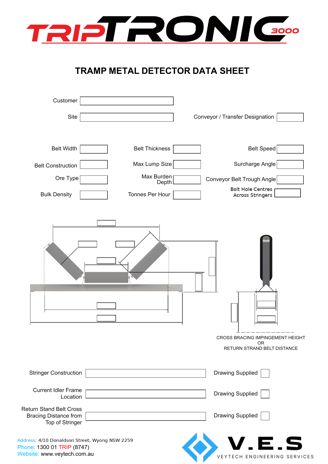

Printable data sheet (PDF)

The same fields on one A4 page for the site walk-down. Fill it in, photograph it and email it to us.

Download PDF PDF, 1 page. Fill it in on site and email it to enquiries1@veytech.com.au with any drawings.

Measurements on the data sheet drawing Data sheet drawing of a three-roll trough idler set and stand with eleven numbered dimension boxes

Enter the numbered dimensions (mm) in the form. Box 11 is the cross-bracing impingement height or return-strand belt distance. If you have a drawing of the idler frame and stringer, attach it and skip the numbers.
